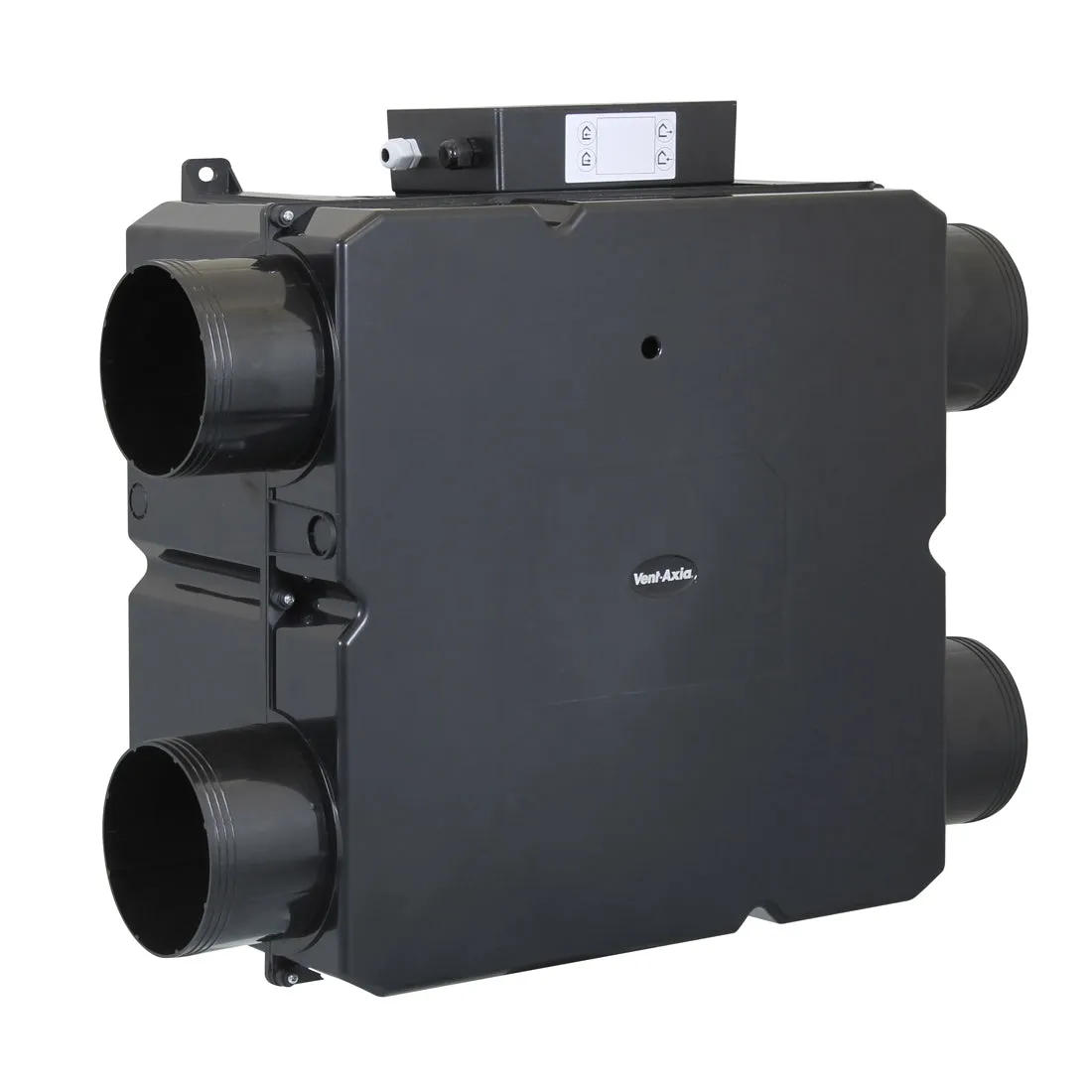

Vent-Axia Integra Plus EC Heat Recovery Unit
Product Part Number: 437666EC
💡 Description
The Vent-Axia Integra Plus EC Heat Recovery Unit is engineered for flats and internal rooms in large residential, commercial, educational, or leisure applications. With its high-performance polymeric heat exchanger and EC fan motors, the Integra Plus offers up to 70% temperature efficiency by using 150mm ducting to provide balanced supply and extract air ventilation with heat recovery.
The compact design of the heat exchanger ensures energy savings as it uses no power itself, making it ideal for improving indoor air quality while saving on room heating costs.
🌟 Key Features:
- High-Efficiency Heat Recovery: Offers up to 70% efficiency by transferring heat between outgoing moist air and incoming fresh air, without mixing the two.
- EC Motors: Equipped with 2 low-energy, high-efficiency EC motors to ensure optimal performance and energy savings.
- Three Adjustable Speed Options: Normal, Boost, and Purge settings for customizable airflow based on your needs.
- Compact & Versatile: Designed for installation in ceiling voids, lofts, or above suspended ceilings to fit easily into a variety of spaces.
- Independent Filtration: Requires independent filtration for cleaner, filtered air circulation.
- Easy Ducting Connections: Comes with 4 x 150mm spigots for flexible, simple connections to insulated flexible or rigid ducts.

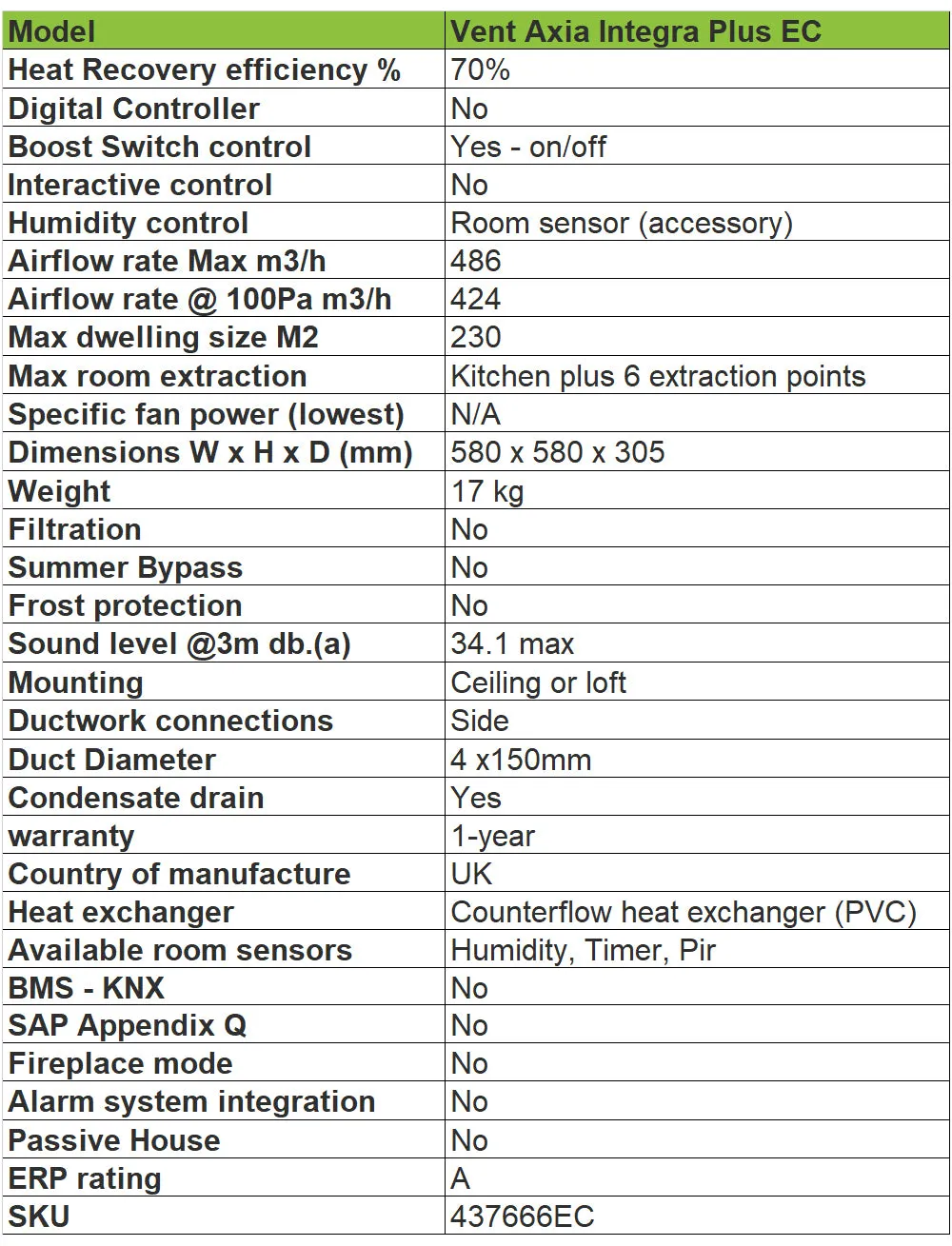

📐 Technical Specifications:
| Feature | Details |
|---|---|
| Heat Recovery Efficiency | Up to 70% |
| Speed Settings | Normal, Boost, Purge |
| Motors | 2 x low energy EC motors |
| Duct Connections | 4 x 150mm spigots |
| Condensate Outlet | 22mm located on the base |
| Construction | PVC |
| Dimensions (H x W x D) | Please inquire for exact dimensions |
| Mounting Options | Ceiling voids, lofts, above suspended ceilings |
🔧 Controllability:
- Three-Speed Control: The Integra Plus EC allows you to choose from Normal, Boost, and Purge airflow speeds for ultimate control.
- Boost Operation: Easily boost airflow using a wall switch for rapid ventilation when needed.
- EC Motors: These motors enable quiet and energy-efficient operation, while still offering high-performance heat recovery.
📦 What's Included?
- 1 x Vent-Axia Integra Plus EC Heat Recovery Unit
- Installation Manual
- 4 x 150mm spigots for duct connections
- 22mm condensate outlet for drainage
💡 Why Choose the Vent-Axia Integra Plus EC Heat Recovery Unit?
- Energy Efficient: With up to 70% heat recovery, it reduces energy consumption while improving indoor air quality.
- Quiet Operation: The EC motors ensure ultra-quiet operation while maintaining high performance.
- Flexible Installation: Can be installed in a variety of locations including ceiling voids and above suspended ceilings.
- Compact Design: Its compact size allows it to fit into spaces with limited room while delivering excellent performance.
- Easy Ducting: Comes with 4 x 150mm spigots for easy connection to your ducting system.
For further details or customized solutions, contact us today!
